China Custom RK3588S Linux SBC Ethernet Single Board LBA3588S Arm Android wholesale

Custom RK3588S Linux SBC Ethernet Single Board LBA3588S Arm Android

Name: Custom RK3588S Linux SBC Ethernet Single Board LBA3588S Arm Android
Brand: Neardi
Price: 1 USD

Ask Latest Price

Video Channel

Brand Name :Neardi

Model Number :LBA3588S

Place of Origin :Shanghai, China

MOQ :1 piece

Price :Negotiable

Payment Terms :L/C, D/A, D/P, T/T

Supply Ability :10000/pieces/mon

Delivery Time :7 days

Packaging Details :33.5×19×9 cm

SoC :RK3588S

Supplier Type :OEM/ODM

CPU :4A76 + 4A55

GPU :ARM Mali-G610 MC4

NPU :6 TOPS

VPU :8K

DDR :LPDDR4, with options for 4GB, 8GB, or 16GB capacities.

eMMC :eMMC 5.1, 32GB, 64GB, or 128GB

Working Temperature :-10 ~ 70℃

PCB interface :B2B

Embedded :Yes

OS :Android / Ubuntu / Buildroot / Debian

Application :Edge AI Computing

Contact Now

Add to Cart

View Product Description

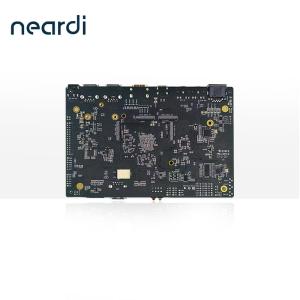

Neardi RK3588S Linux SBC LBA3588S Arm Android Single Board Computer

The LBA3588S is a multifunctional industry board meticulously designed based on the Rockchip RK3588S chip platform. The board is versatile, equipped with a rich set of interfaces, compact in size, and sleek and flat, making it suitable for products with limited structural space.

The LBA3588S features 3 Type-A USB 3.0 HOST ports and 1 Type-C USB 3.1 OTG, capable of connecting to multiple USB cameras externally. It also has 1 mini-PCIe interface that supports the expansion of 4G/5G modules or RK1808-based mini-PCIe NPU computing cards. Additionally, it is equipped with 1 M.2 M-Key for expanding storage space or NPU computing power cards. The LBA3588S also supports dual-band WIFI 6, BT 5.0, 1 Gigabit Ethernet, UART, RS232, I2C, RS485, CANBUS, and other commonly used communication module interfaces. It supports multiple MIPI CSI camera input interfaces as well as 1 HDMI 2.0 interface output and 1 dual-channel LVDS display output.

The LBA3588S supports Android, buildroot, Debian, and Ubuntu operating systems, offering advantages such as high performance, high reliability, and high extensibility, and providing users with open system source code. Users can develop and customize based on this product, and our company provides comprehensive technical support for developers and enterprise users, enabling them to efficiently complete research and development work and significantly shorten the product development and mass production cycle.

Function	Description
CPU	RK3588S 8nm; 8-core 64-bit processor architecture (4A76 + 4A55).
GPU	ARM Mali-G610 MC4; Supports OpenGL ES 1.1/2.0/3.1/3.2; Vulkan 1.1/1.2; OpenCL 1.1/1.23/2.0; High-performance 2D image acceleration module.
NPU	6TOPS computing power / 3-core architecture; Supports int4/int8/int16/FP16/BF16/TF32
VPU	Supports H.265/H.264/AV1/VP9/AVS2 video decoding, up to 8K60FPS; Supports H.264/H.265 video encoding, up to 8K30FPS
DDR	LPDDR4, with options for 4GB/8GB/16GB.
eMMC	eMMC 5.1, with options for 32GB/64GB/128GB.
PMU	RK806
OS	Android / Ubuntu / Buildroot / Debian
Power	DC12V - 3A (DC Jack 5.5*2.1mm / PH2.0 wafer connector)
USB	3Type-A USB3.0 HOST 1 Type-C USB3.1 OTG
Display	1*Type-A HDMI 2.1 up to 8K@60fps or 4K@120fps Dual channel LVDS up to 1080P@60HZ
Audio	φ3.5mm earphone Jack with L/R audio out φ3.5mm microphone Jack with Mic in 2*2.7W/4Ω speaker out with L/R channel
Camera	3* MIPI CSI (4 Lane) or 2MIPI CSI (2 Lane) + 2 MIPI CSI (4 Lane)
Mini-PCIe	mini PCIe for 2G/3G/4G/5G module RK1808 AI computing card
M.2	M.2 NGFF ( M-KEY ) PCIE V3.0 x4 with NVMe SSD supported
SD	Compatible with SDIO 3.0 protocol, system boot up supported
SIM card	Micro sim slot for Mini-PCIe 4G LTE module
RJ-45	1*10/100/1000-Mbps data transfer rates
RTC	RTC power on and off supported
Serial port	2Uart,1CANBUS,2RS232,RS485,1I2C
Keys	3* keys (power, reset, update)
Dimensions	Length * Width * Height (mm) 150 * 100 * 12.67
Operating Temperature	-10 ~ 70℃
Weight Approximately	Approximately 112g (excluding peripherals)

Custom RK3588S Linux SBC Ethernet Single Board LBA3588S Arm Android

Developer's Must-Read!

Welcome to our Resource Center, where you can find various helpful links and information for developers.

Please visit the corresponding Wiki documentation link to obtain detailed information about the product of your choice, including the following: Hardware information: Specifications, components, and technical parameters of the product debugging Methods: Common troubleshooting steps and debugging techniques. Interface Information: Available interfaces and their functional descriptions.Firmware Programming: Guidance on firmware updates and programming processesCompiling SDK: Detailed instructions for compiling and configuring the SDK.Linux and Android Development: Development guidelines and best practices for Linux and Android environments.

Wiki Documentation:	http://wiki.neardi.net/docs/welcome
GitHub:	https://github.com/neardiGitLab: https://gitlab.com/neardiSDK
Repository:	https://gitlab.com/neardi-linux
Forum:	https://forum.neardi.com
Video Tutorials:	https://www.youtube.com/@neardichannels

Company Introduction

Shanghai Neardi Technology Co., Ltd. was established in 2014, focusing on the field of intelligent electronic products, providing customers with one-stop solutions for design and production. The company adheres to the strategy of technological innovation and professional service, integrates the technical precipitation and industry experience of Neardi Technology, helps partners to introduce products to the market quickly and efficiently, effectively saves customers' time and resources, and becomes the product accelerator of partners.

After-sale Service Policy

1. Please take a valid purchasing voucher for maintenance requests when you have product failure problems.
2. We kindly provide one year of warranty to the ARM board except for non-warranty components(CPU, RAM, and Flash/ storage chips) and a three-month warranty to display and power adapter from the ex-factory date.
3. Product failure in expired time, we kindly provide paid maintenance service. Charges depend on the assessment by the maintenance department. If goods are seriously damaged, the accessory is discontinued, or other uncontrollable conditions may cause the products can not be fixed, Neardi will not provide maintenance service.
4. Neardi kindly provides one month of warranty for the repaired items, payment should be made to the appointed account. Note: This warranty is only valid for the repaired problem.
5. Please take necessary data backup before the defective item is sent back up for maintenance, all risks caused by no backup should be borne by customers.
6. Neardi will reject items sent back without our permission.
7. To goods within the warranty period, freight should be shared by both sides, otherwise, the customer should bear all maintenance-related freight and customs fees.
Non-warranty Coverage(Paid Maintenance Service):
1. Products out of warranty period;
2. Non-warranty components including CPU, RAM, and Flash chips;
3. Failure caused by improper operations like PCB short circuit, rupture;
4. Bar code or factory ID tampered or other operations cause the products can not be recognized;
5. The bar code or factory ID on the purchasing voucher is not matched with the product itself;
6. Product failure caused by unauthorized maintenance, improper operations, misuse operations, or other unexpected behaviors.
7. Product failure caused by force majeure.
8. Other failures caused during delivery.
